TP-Link TL-SF1008D 8-Port 10/100Mbps Switch - Compact & Reliable

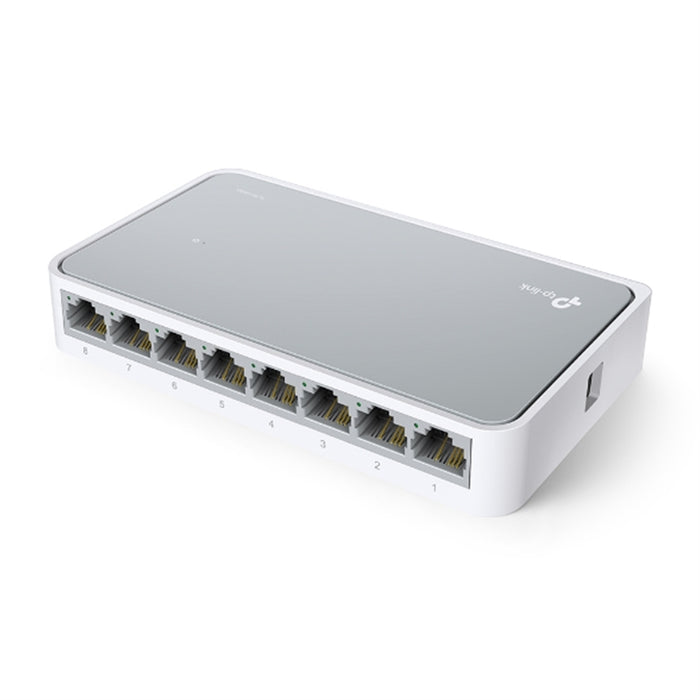

TP-Link SOHO TL-SF1008D 8-Port 10/100Mbps Desktop Switch

The TP-Link TL-SF1008D is an 8-Port 10/100Mbps desktop switch, ideal for SOHO or small business networking. Its compact size and fanless design make it perfect for quiet desktop use, while its wall-mountable plastic casing offers flexible installation.

Key Features:

✅ 8× 10/100Mbps Auto-Negotiation RJ45 ports with Auto-MDI/MDIX
✅ IEEE 802.3x flow control (Full Duplex) and backpressure (Half Duplex)
✅ Plug-and-Play with no configuration required
✅ MAC address auto-learning and auto-aging
✅ LED indicators for power and link/activity monitoring
✅ Desktop or wall-mountable plastic casing
✅ Energy-efficient design with max power consumption of just 2.05W

High Performance:

Delivers non-blocking switching architecture that forwards and filters packets at full wire-speed. Supports auto-negotiation and auto-MDI/MDIX, eliminating the need for crossover cables or uplink ports.

Easy to Use:

This switch is fully plug-and-play. Each port automatically senses link speed (10/100 Mbps) and adjusts for optimal performance. The compact design fits in any space and the fanless build ensures silent operation.

Hardware Specifications:

• Standards: IEEE 802.3, 802.3u, 802.3x

• Interfaces: 8 × 10/100Mbps RJ45 (Auto-Negotiation, Auto-MDI/MDIX)

• Power Supply: External 5.0VDC / 0.6A (100–240VAC input)

• Buffer Size: 768Kb

• Data Rates:

  • 10/100Mbps (Half Duplex)

  • 20/200Mbps (Full Duplex)

• LED Indicators: Power, Ports 1–8

• Max Power Consumption: 2.05W

• Max Heat Dissipation: 6.99 BTU/h

• Fan: Fanless design

• Dimensions: 134.5 × 79 × 22.5 mm

Software Features:

• Transfer Method: Store and Forward

• Advanced Functions:

  • 802.3x Flow Control

  • Back Pressure

  • Green Technology

Environment:

• Operating Temp: 0°C to 40°C

• Storage Temp: -40°C to 60°C

• Operating Humidity: 10%–90% non-condensing

• Storage Humidity: 5%–90% non-condensing

Package Contents:

• TL-SF1008D 8-Port Switch

• Power Adapter

• Quick Installation Guide
