ASRock B850 PRO RS WiFi - AMD Ryzen 9000/8000/7000 | DDR5

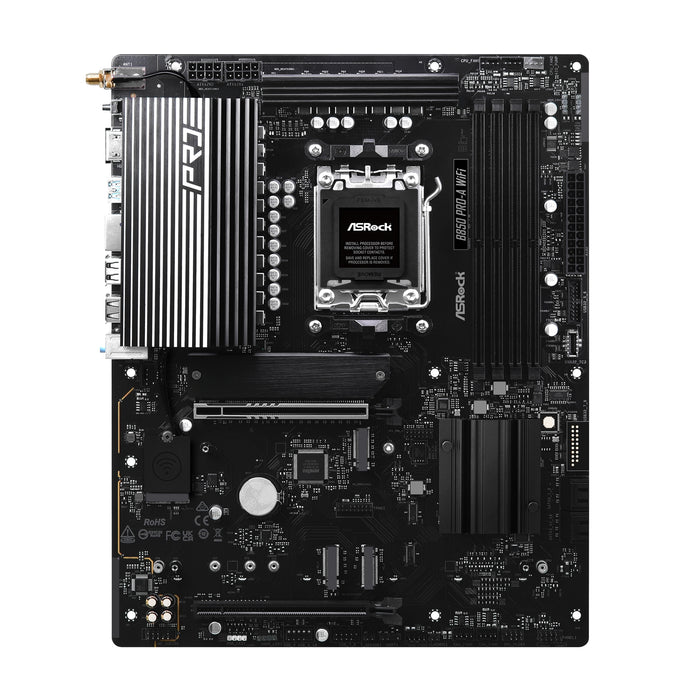

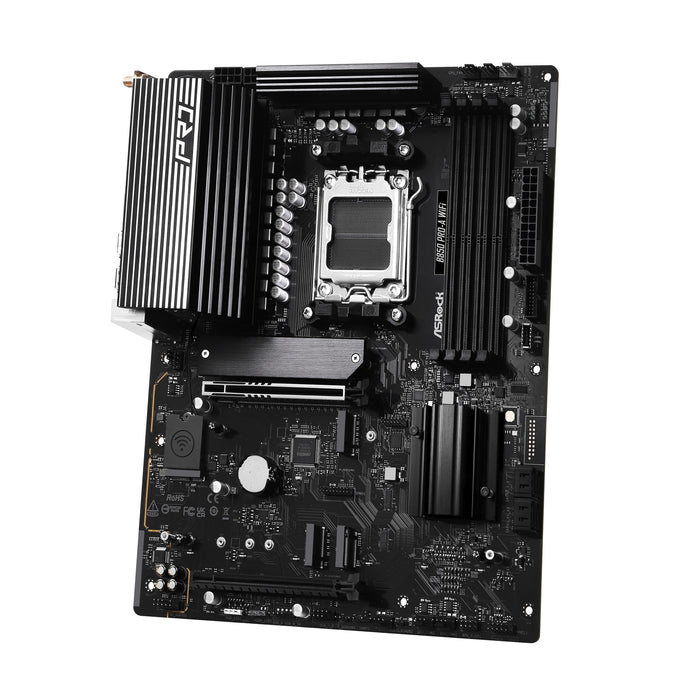

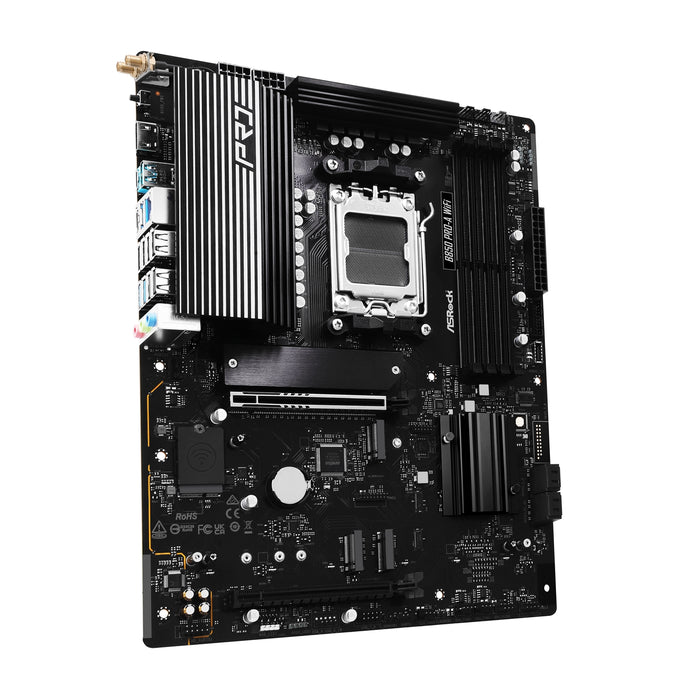

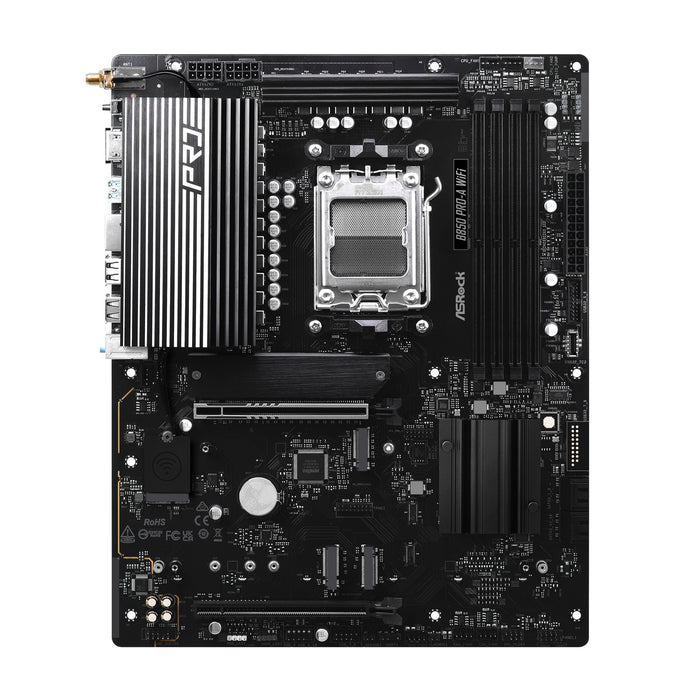

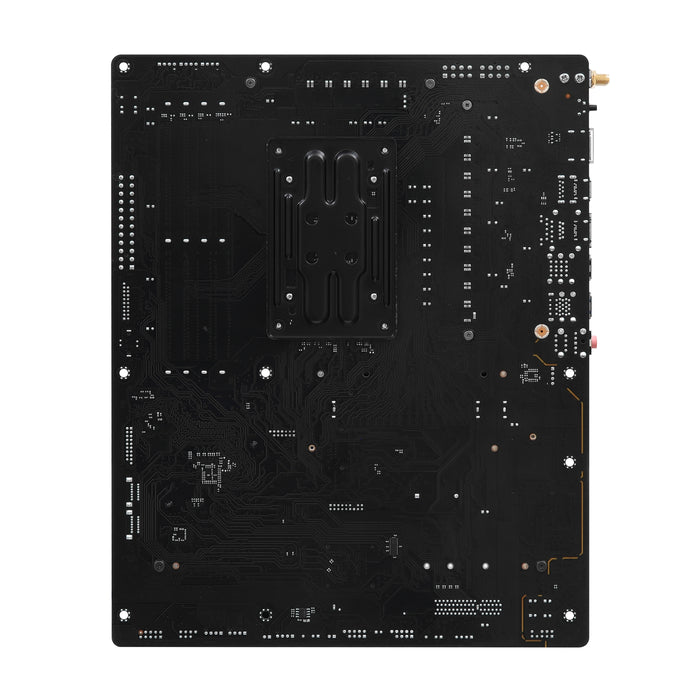

ASRock B850 Pro-A WiFi 🖥️
The ASRock B850 Pro-A WiFi motherboard is the perfect foundation for your next high-performance build. Designed to support the latest AMD Ryzen 9000, 8000, and 7000 Series Processors, this ATX motherboard combines cutting-edge technology with robust features to ensure seamless performance and connectivity.
Why Choose the ASRock B850 Pro-A WiFi?
Unmatched Performance:
-
Supports AMD Socket AM5: Compatible with the latest AMD Ryzen 9000, 8000, and 7000 Series Processors for exceptional processing power. 💪
Blazing Fast Memory:
-
Dual Channel DDR5: Features 4 DIMM slots supporting DDR5 memory up to 8000+(OC) for unparalleled memory speeds. 🚀
Advanced Storage Solutions:
-
Multiple M.2 Slots: Supports up to 4 NVMe M.2 SSDs, including Blazing M.2 (PCIe Gen5x4) and Hyper M.2 (PCIe Gen4x4) slots, ensuring rapid data transfer and ample storage options. 💾
Efficient Thermal Management:
-
M.2 Bottom Heatsink: Effectively dissipates heat through the motherboard PCB, maximizing performance while maintaining system stability. ❄️
Enhanced Connectivity:
-
High-Speed USB Ports: Equipped with USB 3.2 Gen2x2 Type-C, USB 3.2 Gen2 Type-C, and USB 3.2 Gen1 Type-C ports for faster data transfer rates. 🔗
Reliable Networking:
-
Fast Networking: With Realtek 2.5G LAN and Wi-Fi 6E, experience low-latency, high-speed internet connectivity for gaming and streaming. 🌐
Superior Audio Quality:
-
Nahimic Audio: The Realtek ALC897 7.1 CH HD Audio Codec with Nahimic Audio delivers crystal-clear sound for an immersive gaming and multimedia experience. 🎧
User-Friendly Design:
-
EZ-Latch Plus & Click: Tool-free PCIe and M.2 slots with quick-release screwless design make upgrades and installations a breeze. 🔧
Future-Proof and Sustainable:
-
Eco-Conscious Innovation: Built with sustainability in mind, featuring energy-efficient components that reduce environmental impact. 🌍
Specifications:
Platform:
-
Form Factor: ATX (12.0 in x 9.6-in, 30.5 cm x 24.4 cm)
Unique Features:
-
Productivity: PCIe Gen5 (Graphics, M.2), Dual Channel DDR5, Rock-Solid Durability
-
Connectivity: 2.5G LAN, 802.11axe Wi-Fi 6E Module, EZ Update, BIOS Flashback Button, ASRock Auto Driver Installer, EZ Troubleshooter, ASRock Post Status Checker
CPU:
-
Socket: AMD AM5
-
Supported Processors: AMD Ryzen 9000, 8000, and 7000 Series Processors
Chipset:
-
AMD B850
Memory:
-
Slots: 4 x DDR5 DIMM
-
Capacity: Up to 256GB
-
Support: DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC), XMP and EXPO memory modules
Expansion Slots:
-
CPU:
-
1 x PCIe 5.0 x16 Slot
-
-
Chipset:
-
1 x PCIe 4.0 x16 Slot
-
Graphics:
-
Integrated AMD RDNA™ Graphics:
-
1 x HDMI 2.1 TMDS/FRL 8G Compatible, 4K 120Hz
-
1 x USB 3.2 Gen1 Type-C, DP 1.4 HBR3, 4K 60Hz
-
Audio:
-
Codec: Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
LAN:
-
Realtek 2.5GbE LAN Chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless LAN:
-
Module: 802.11axe Wi-Fi 6E
-
Bluetooth: 5.2
USB:
-
CPU:
-
1 x USB 3.2 Gen2 Type-C (Rear)
-
1 x USB 3.2 Gen1 Type-C (Rear)
-
2 x USB 3.2 Gen1 Type-A (Rear)
-
-
Chipset:
-
1 x USB 3.2 Gen2x2 Type-C (Front)
-
6 x USB 3.2 Gen1 Type-A (2 Rear, 4 Front)
-
10 x USB 2.0 (6 Rear, 4 Front)
-
Storage:
-
M.2:
-
1 x Blazing M.2 (PCIe Gen5x4)
-
2 x Hyper M.2 (PCIe Gen4x4)
-
1 x Ultra M.2 (PCIe Gen3x4)
-
-
SATA3:
-
4 x SATA3 6.0 Gb/s
-
BIOS:
-
Features: 256Mb AMI UEFI Legal BIOS with GUI support
Software and UEFI:
-
ASRock Motherboard Utility (A-Tuning), ASRock Dragon 2.5G LAN Software, ASRock Polychrome SYNC, ASRock EZ Mode, ASRock Full HD UEFI, ASRock Auto Driver Installer, ASRock Instant Flash
OS:
-
Support for Microsoft Windows 10 64-bit / 11 64-bit
Certifications:
-
FCC, CE, ErP/EuP ready
Accessories:
-
2 x SATA Data Cables, 2 x ASRock WiFi 2.4/5/6 GHz Antennas
The ASRock B850 Pro-A WiFi motherboard is designed for enthusiasts and professionals who demand top-tier performance, connectivity, and durability. Build your ultimate gaming and computing rig with this innovative and eco-friendly motherboard. 🌟💻
